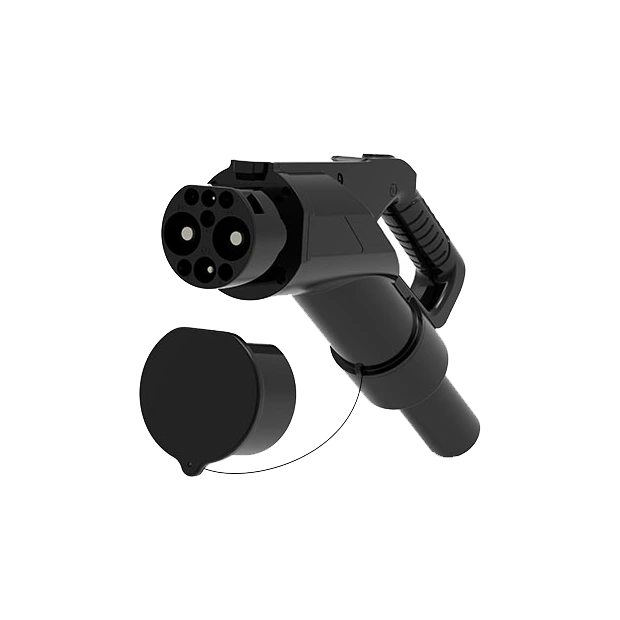

GB/T DC Charging Connector
Mechanical properties:
Mated force：<140N
Mated cycles：10000 Cycles (Unload)
Cable standard: GB/T 33594-2017;
Outer sheath material: black, rubber
Electrical performance :
voltage: 750V /1000V DC
current: 80A/125A/200A/250A
Insulation resistance：>2000MΩ
Withstand voltage：3500V AC
Environmental performance :
Operate Temperature：-40℃ ~ +50℃
Pollution Degree：Level 3
IP Class：IP55
Flame class：UL94-V0
Product description
(1) The handheld design is ergonomic and comfortable
(2) The product protection level is up to IP55
(3) Provide OEM/ODM
(4) We can customize the cable length, and color, and redesign it
according to customer requirements
Our advantage
Parameter
|
GB/T DC Charging Connector |
||||||||
|
Code |
Type |
Output current |
Output voltage |
Harness specification |
Cable length |
Color of DC gun shell |
Resistance Value of Rc |
Cable O.D |
|
26001 |
AP-GDC-80A |
80A |
750V/1000V |
20mm² |
5.1m（customize） |
White/Black |
1000Ω |
33.5±1 |
|
26002 |
AP-GDC-125A |
125A |
750V/1000V |
35mm² |
5.1m（customize） |
White/Black |
1000Ω |
36.5±1 |
|
26003 |
AP-GDC1-200A |
200A |
750V/1000V |
50mm² |
5.1m（customize） |
White/Black |
1000Ω |
37.5±1 |
|
26004 |
AP-GDC2-200A |
200A |
750V/1000V |
70mm² |
5.1m（customize） |
White/Black |
1000Ω |
37.5±1 |
|
26005 |
AP-GDC1-250A |
250A |
750V/1000V |
70mm² |
5.1m（customize） |
White/Black |
1000Ω |
40±1 |
|
26006 |
AP-GDC2-250A |
250A |
750V/1000V |
80mm² |
5.1m（customize） |
White/Black |
1000Ω |
40±1 |
|
26007 |
AP-GDC3-250A |
250A |
750V/1000V |
2*35mm² |
5.1m（customize） |
White/Black |
1000Ω |
30.5±1 |
