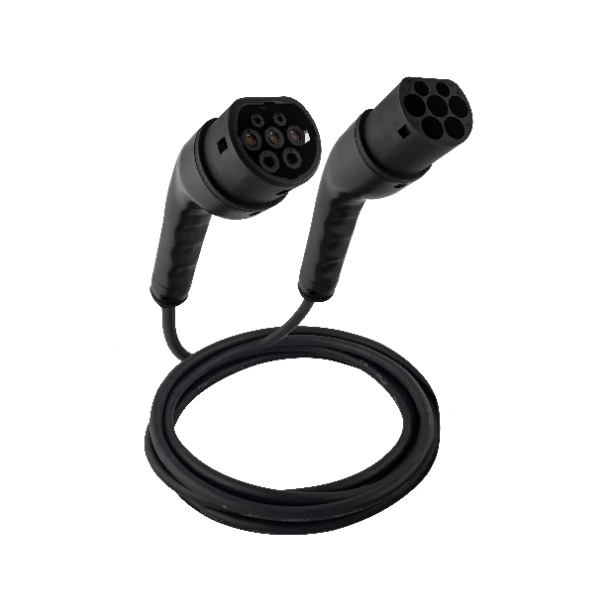

Type 2 -Type 2 Charging Connector
Mechanical Performance：
Plastic shell: thermoplastic
Contact terminal: Copper Alloy, Silver-plated
Mechanical life: ≧10,000 times
Environment Performance:
Operating temperature: -30℃~+50℃
Protection degree : IP54
Flame-retardant grades :UL94 V-0
Electrical performance：
Temperature Rise: <50K
Rated current: 16A/20A/32A
Rated voltage: 250V/480 V
Withstand voltage: 2500 V
Contact resistant: 0.5mΩ Max
Product description
In accordance with IEC 62196-2 regulations and requirements, the handheld design is ergonomic, comfortable, and product protection level is up to IP54. We can customize and OEM according to customer requirements.
Our advantage
Parameter
|
Type 2 -Type 2 Charging cable |
|||
|
Code |
Type |
Current |
Cable specification |
|
8005 |
AP-EVP-M2F2-116 |
16A/250V |
3*2.5mm²+2*0.5mm²/OD 10.2±0.3mm/Black |
|
8006 |
AP-EVP-M2F2-132 |
32A/250V |
3*6mm²+2*0.5mm²/OD 12.8±0.3mm/Black |
|
8007 |
AP-EVP-M2F2-316 |
16A/480V |
5*2.5mm²+2*0.5mm²/OD 12.8±0.3mm/Black |
|
8008 |
AP-EVP-M2F2-332 |
32A/480V |
5*6mm²+2*0.5mm²/OD 16±0.3 mm/Black |
|
Statement：The cable length can be customized according to your demand |
|||
About Us
AP Team focuses on the product design, development, marketing and supply chain integration of new energy electrical connection. The team has over 20 years of experience in the industry and served multiple well-known domestic and global new energy partners including famous vehicle manufacturers, and electrical connectivity company.
FAQ
They are particularly useful in applications requiring high load-bearing capabilities, stability, and resistance to wear and tear.
Hyperboloid contacts are often used in harsh environments where other contact mechanisms may fail, such as high temperatures, high pressures, and corrosive environments.
