16 core PCB connectors 1
16 core PCB connectors 1

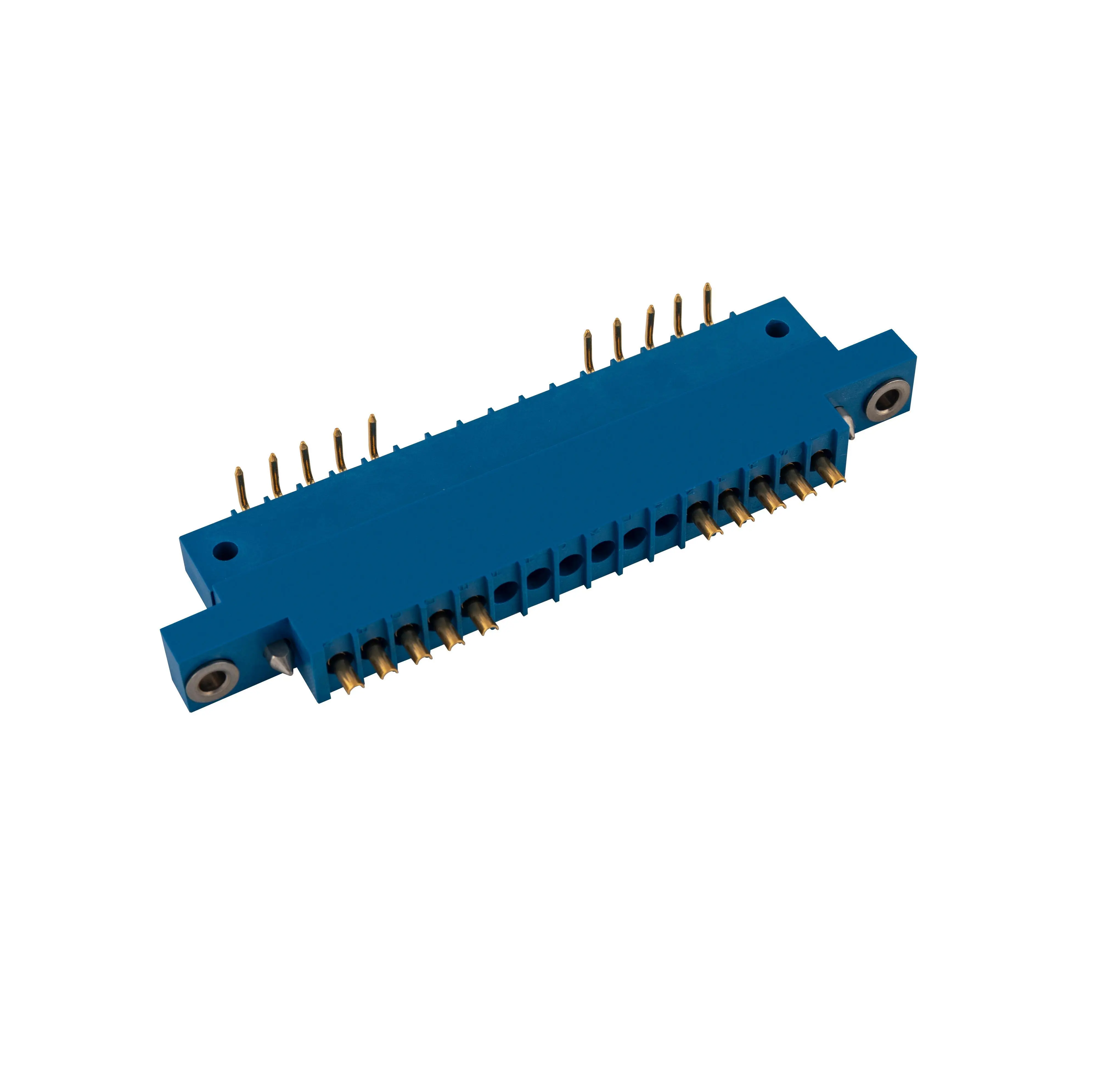

16 core PCB connectors

Mechanical properties:

Mechanical life: 1 00 00 times

Flame retardant grade: UL94V- 0

Conductor plating: 0. 25 µm of gold over nickel

Plastic material: PSU with glass fiber blue

Insulation material:PPS

Adapter wire: max AWG16



Environmental performance :

Working temperature: - 40°C - +125°C

Damp heat test: '+40°С @ 93% relative humidity 56 days

Wire connection method:soldering



Electrical performance :

Rated current: 8A

Peak current: 16A

Dielectric withstand voltage: 5 00VDC((between adjacent terminals)

    oops...!

    no product data.

    Go to homepage

    Product description

    16-core PCB connector, as a specific specification of electronic connector, is mainly used to connect the circuit parts on the printed circuit board (PCB) together to achieve signal transmission and circuit interconnection..Aupins specializes in the production of PCB connector and other equipment, one-stop procurement and supplemented by expert technical support, to provide customers with high-quality PCB connectors, reliable quality.

    1.Contacts in the connector are non-removable

    2.Contacts in the connector are secured against rotation

    3.Contacts in the connector are secured against move-ment

    4.Fullmechanical interchangeability with the prototype

    连接器
    连接器

    Our advantage

    factory (3)
    Smaller size
    AP terminals are not only particularly efficient but also with space-saving and high-current-carrying connectors
    customize
    Low resistance
    AP provides the best user experience specifically designed for consumer product applications by keeping the temperature and energy loss in an efficient level
    approved (1)
    Long life cycle
    The features of HBS terminals are over 20000 cycles with superior stability
    customer-review
    Soft pulling force
    AP high-current connectors are designed with special structure. This will facilitate user experience by soft pulling force

    Parameter

    16 core connector(PCB)

    Code

    Type

     Pin diameter(mm)

    Current(A)

    Pin Properties

    10001

    AP-AHTB-PCBM

    1.5

    8-16

    Male

    10002

    AP-AHTB-PCBF

    3

    8-16

    Female
