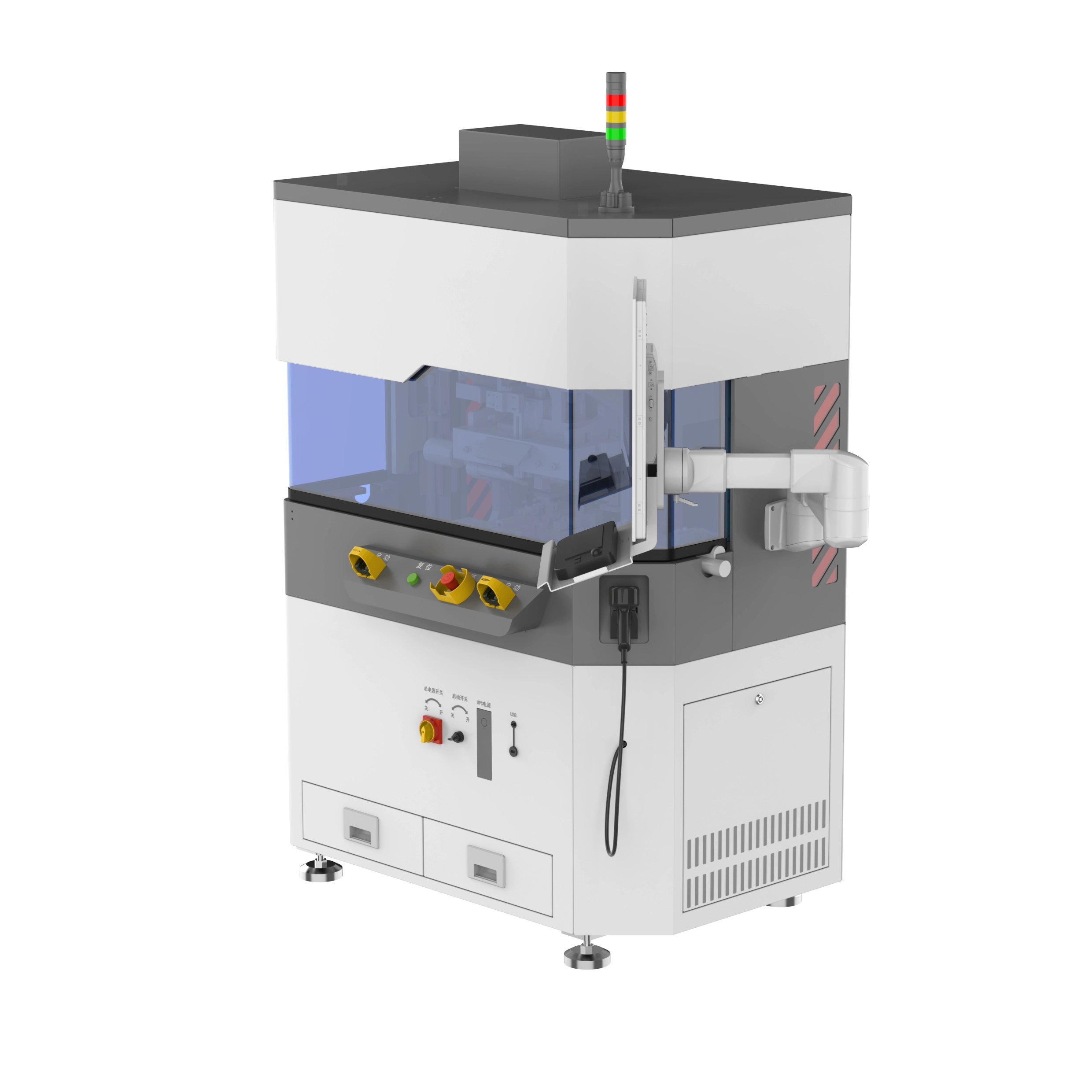

Ultrasonic Terminal Welding Machine-AUPINS 1
Ultrasonic Terminal Welding Machine-AUPINS 1

Ultrasonic Terminal Welding Machine-AUPINS

Mechanical properties:

Size: 2060*1010*2300mm

Weight: 860kg/944kg

Data storage: 100,000 sets of product welding data

Production efficiency: 120pcs/H-150pcs/H

Copper wire welding range: 16mm²-70mm²/16mm-120mm²/35mm²-150mm²

Aluminum wire welding range: 16mm²-85mm²/16mm²-150mm²/35mm²-200mm²

Alarm function: Welding result monitoring, control of welding time, energy, pressure, amplitude power, pre-welding height, and post-welding height

Interface display: Displays welding time, energy, power, pressure, number of times, amplitude, frequency and other information

Display mode: 21.5-inch touch all-in-one computer 21.5inch

Electrical performance

Power: 6200W/13000W/18000W

Input voltage: AC380V 50Hz

Air source pressure: >0.5MPa

    oops...!

    no product data.

    Go to homepage

    Product description

    (1) Adopting advanced ultrasonic welding technology

    (2)  Easy to operate

    (3) Automated welding is controlled by industrial computers

    (4) Password protection and data storage

    (5) Low maintenance costs

    (6) Anti empty or error welding function

    (7) Data storage

    (8)  Error prevention and quality monitoring

    (9)  Supports multiple welding modes



    d046c2c7-8aaf-405a-beec-ae0f10fb3145
    d046c2c7-8aaf-405a-beec-ae0f10fb3145

    Our advantage

    factory (3)
    Smaller size
    AP terminals are not only particularly efficient but also with space-saving and high-current-carrying connectors
    customize
    Low resistance
    AP provides the best user experience specifically designed for consumer product applications by keeping the temperature and energy loss in an efficient level
    approved (1)
    Long life cycle
    The features of HBS terminals are over 20000 cycles with superior stability
    customer-review
    Soft pulling force
    AP high-current connectors are designed with special structure. This will facilitate user experience by soft pulling force

    Parameter

    D02/D02G/D03G Ultrasonic Terminal Welding Machine

    Code

    Type

    Power(W)

    Input voltage(V)

    Copper wire

    welding range

    Aluminum wire

    welding range

    Size(mm)

    Weight(kg)

    U10001

    AP-D02

    6200W

    AC 380V50Hz

    16mm²-70mm²

    16mm²-85mm²

    2060*1010*2300mm

    860kg

    U10002

    AP-D02G

    13000W

    16mm²-120mm²

    16mm²-150mm²

    944kg

    U10003

    AP-D03G

    18000W

    35mm²-150mm²

    35mm²-200mm²

    944kg
