Mechanical properties:
unmated: IP2X
Safety class:Ⅱ
Insertion/withdrawal force:<90N
Locking system: Snap-in
Connector System:¢9mm
Degree of protection mated : Type 3R
Durability: 10000 Mating Cycles
Environmental performance :
Waterproof Level: IP67
Insulation material: PC
Flame class: UL94-VO
Ambient temperature range:-40℃..+50℃
Operating temperature:-40℃-105℃
Salt mist spray test. degree of severity 5:IEC 60068-2-52
Contact material: Copper Alloy, Silver plated
Electrical performance :
Rated voltage:1000VDC
Rated current :350A/300A/250A/200A/150A/125A/80A/65A/60A/50A/48A/40A/32A/16A
Test voltage :3KV(50Hz/1min)
The contact resistance of plug connectors:0.35mΩ Max
Product description
(1)All parts must be complant RoHS
(2) Reliable plug-in and pull-out
(3) Compact structure, easy installation
(4) Good environmental resistance
Our advantage
Parameter

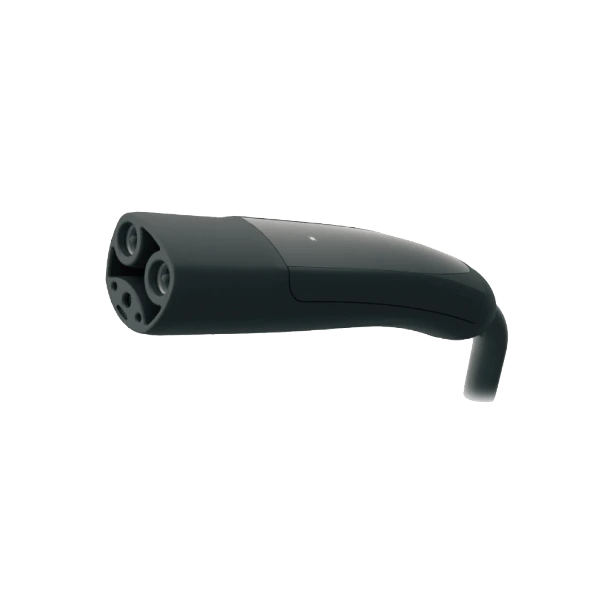

NACS Vehicle Plug/ Socket |
||||
Code |
Type |
Rated current |
Rated voltage |
Test voltage |
13001 |
AP-NACS-Plug |
65A/60A/50A/48A/40A/32A/16A |
500VDC/240VAC |
2KV(50Hz/1min) |
13002 |
AP-NACS-CS |
350A/300A/250A/200A/150A/125A/80A/65A/60A/50A/48A/40A/32A/16A |
1000VDC |
3KV(50Hz/1min) |
