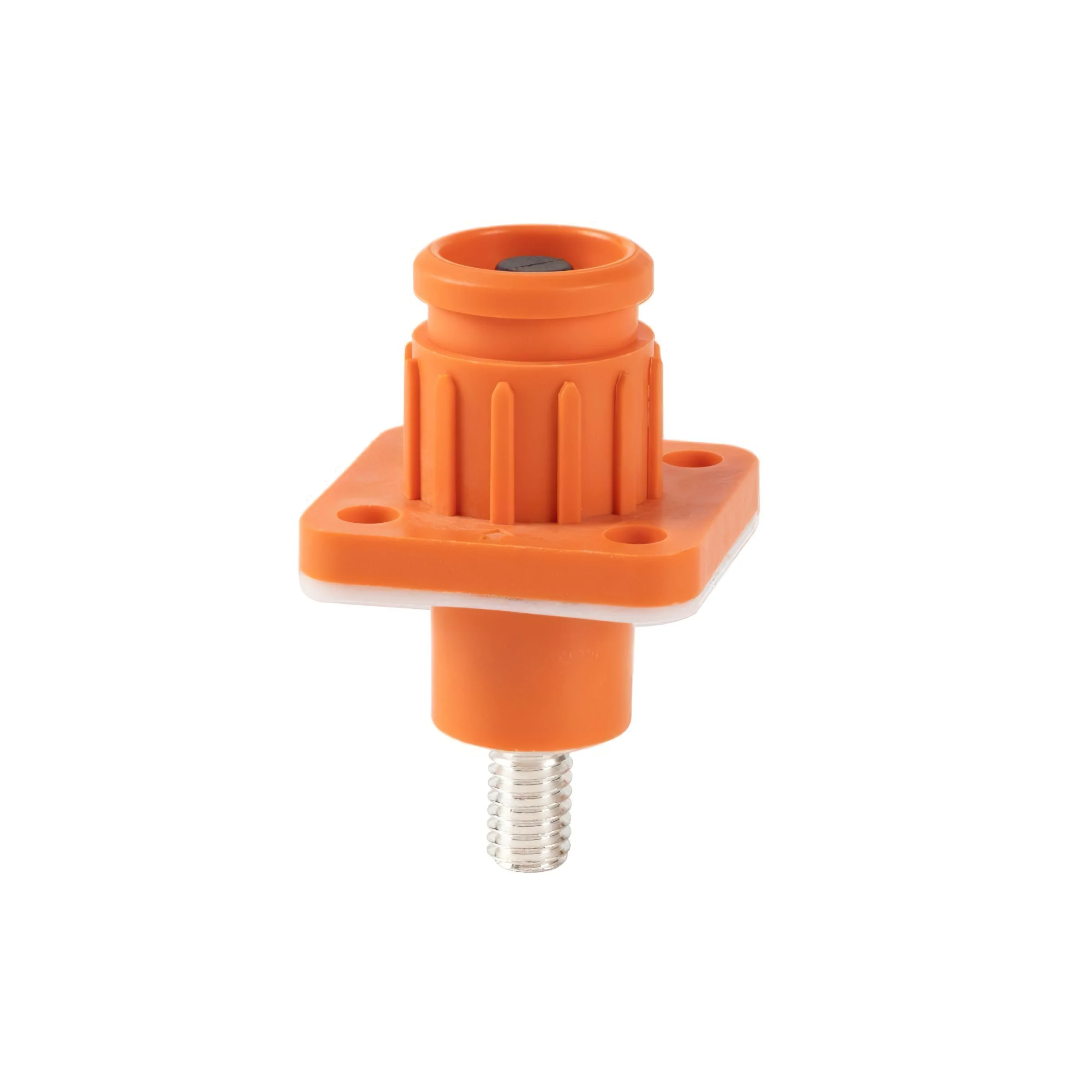

120A-300A Threaded (PL) ESS Plug with Key

Mechanical Performance：

Plastic shell: PA66+G/F

Sealing ring: Silicon rubber

Contact terminal: T2 Copper Alloy, Silver-plated

Mechanical life: 500 times

Environmental performance:

Operating temperature: -40℃~125℃

Protection degree :IP67

Flame-retardant grades :UL94 V-0

Electrical performance:

Rated current: 5.7mm (120A), 8.0mm (200A), 10.3mm (300A)

Contact resistance: 0.2mΩ Max

Insulation resistance: ≥5000MΩ

Working voltage: 1500V AC/DC

withstand voltage : 6800V AC/DC

Inquiry

Write a Review

Product description

Key position：K1,K2, pin diameter ：5.7mm, 8.0mm, 10.3mm, 120A-300A V (DC), color：orange/black, cables: ：6 mm²~95 mm²,Protection degree :IP67

1.Comply with RoSH/REACH environmental requirements

2.Good protection performance IP67

3.Special interface for energy storage battery module

4. Plug and socket easy connection, push and pull to separate

5.Adopt two measures of color and key position to prevent short circuit of misinsertion

6. Certification: CE and Customized according to customer needs

120A-300A螺纹式快插系列储能键位连接器AP-HVCN系列

Our advantage

Smaller size

AP terminals are not only particularly efficient but also with space-saving and high-current-carrying connectors

Low resistance

AP provides the best user experience specifically designed for consumer product applications by keeping the temperature and energy loss in an efficient level

Long life cycle

The features of HBS terminals are over 20000 cycles with superior stability

Soft pulling force

AP high-current connectors are designed with special structure. This will facilitate user experience by soft pulling force

Parameter

Threaded (PL) Product Specification
Code	Type	Pin diameter（mm）	Current（A）	Thread MX
50311	AP-HVCN-PLBK1-120057M6	5.7	120	M6
50312	AP-HVCN-PLOK2-120057M6	5.7	120	M6
50321	AP-HVCN-PLBK1-200080M8	8.0	200	M8
50322	AP-HVCN-PLOK2-200080M8	8.0	200	M8
50331	AP-HVCN-PLBK1-300103M10	10.3	300	M10
50332	AP-HVCN-PLOK2-300103M10	10.3	300	M10
