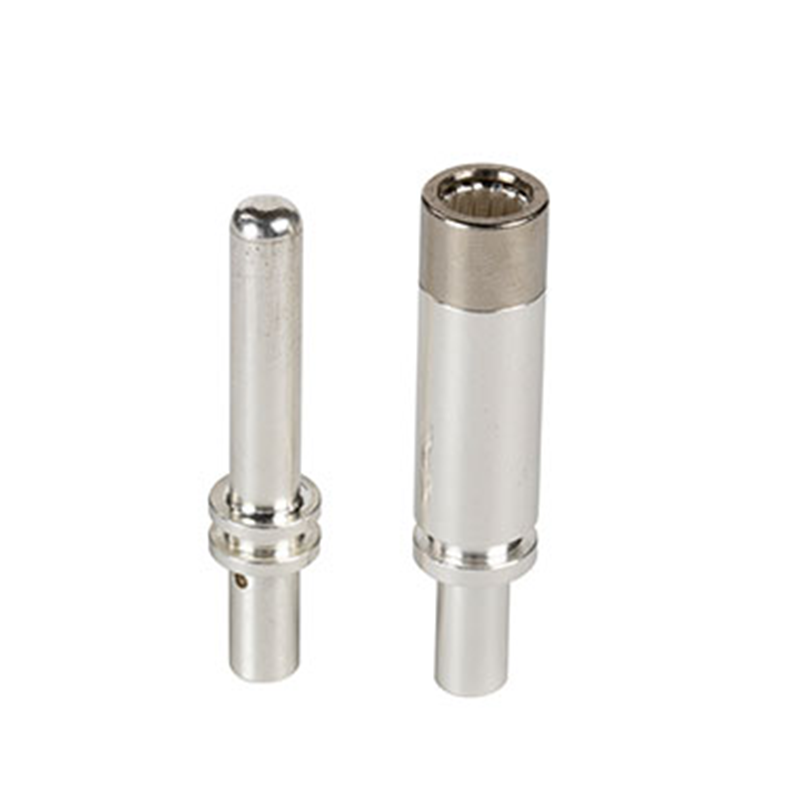

Reliable Metal Hypertac Connector - AUPINS
● Mechanical life: ≧10000 times
● Standard hyperboloid contact,
● Soft mating forces
● Low contact resistance, high ampacity, low-temperature rise
● Safe installation and connecting
● High mechanical durability
● Application: electric vehicle、Energy storage
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product description
The hyperboloid contacts spring terminal is the patented product specially developed and researched by AP team to match the high current connector of the electric vehicle. It is processed according to the principle of hyperboloid, which is the technology closest to the theoretical hyperboloid. And the hyperboloid contacts structure is able to meet the market demands of multi-variety and small batches.
Our advantage
Hyperboloid contacts offer improved load-bearing capabilities and increased stability compared to traditional point or line contacts
Hyperboloid contacts have improved resistance to wear and tear, making them suitable for use in high-stress applications
The use of hyperboloid contacts can lead to improved performance and reduced maintenance costs in many applications
Parameter
| Product Code | imension(Ø)(mm) | Rated Current (A) | Contact Resistanceg(m Ω) |
Pilinr Force (N) |
Temperature Rise<(K) |
Maximum Temperature (℃) |
Maximum Time (H) |
| AP-GBDC-FIN H3-80 |
12 | 80 | 0.5 | 25-35 | 50 | 120 | 8 |
| AP-GBDC-FLN- H3-125 |
12 | 125 | |||||
| AP-GBDC-FLN- H3-200 |
12 | 200 | |||||
| AP-GBDC-FLN- H3-250 |
12 | 250 | |||||
| AP-GBAC-FLN- H1-63 |
6 | 63 | 10-18 | ||||
| AP-IECAC-FLN- H1-32 |
6 | 32 | |||||
| AP-IECAC-FLN- H1-16 |
6 | 16 | |||||
| AP-HBS-14 | 14 | 300 | 0.1 | 35 | 1.The data in the table above are able to be customized for 2.Different materials are corresponding to the different 3.AP is able to provide customized solutions according to |
||
| AP-HB5-16 | 16 | 400 | 0.1 | 40 | |||
| AP-HBS-18 | 18 | 500 | 0.08 | 50 | |||
| AP-HBS-24 | 24 | 1000 | 0.05 | 50 | |||
About Us
AP Team focuses on the product design, development, marketing and supply chain integration of new energy electrical connection. The team has over 20 years of experience in the industry and served multiple well-known domestic and global new energy partners including famous vehicle manufacturers, and electrical connectivity company.
20
Deeply engaged in the industry for 20 years
50+
Sold to 50+ countries worldwide
7
Proofing within 7 days at the fastest
7/24h
7/24h reliable service team responds quickly
FAQ
1
Do you have customer service?
Yes. We have a professional Pre-sales service team and after-sales technical support. We are committed to customer-centered, and providing 24 / 7 effective response, quick response, flexibility, and reliability.
2
What happens next when I order a customized contact pin or other products?
After we receive a deposit, we will arrange the sampling process. Our specialist will contact you and confirm the drawing, and arrange the production.
3
Can you customize the drawings and provide design solution according to my needs？
We will recommend our standard products according to your needs, and if they are not suitable, you can also customize them with separate drawings according to your needs.
4
What is your delivery cycle?
Depending on the product and production capacity, the production cycle may vary. You can contact us to provide you with a detailed production cycle.
5
Where is your company located？
Our sales center is located in Nanjing, and manufacture factory facility is closely nearby.
6
What kind of certificates does Aupins have？
Aupins manufacture facility owns the ISO 9001:2015 and TUV / CE certificates. Product quality is our responsibility to any customers.
7
What are the common applications of hyperbolic contact?
Hyperboloid contacts are used in a variety of engineering and manufacturing applications, including aerospace, defense, telecommunications, and robotics.
They are particularly useful in applications requiring high load-bearing capabilities, stability, and resistance to wear and tear.
Hyperboloid contacts are often used in harsh environments where other contact mechanisms may fail, such as high temperatures, high pressures, and corrosive environments.
They are particularly useful in applications requiring high load-bearing capabilities, stability, and resistance to wear and tear.
Hyperboloid contacts are often used in harsh environments where other contact mechanisms may fail, such as high temperatures, high pressures, and corrosive environments.
