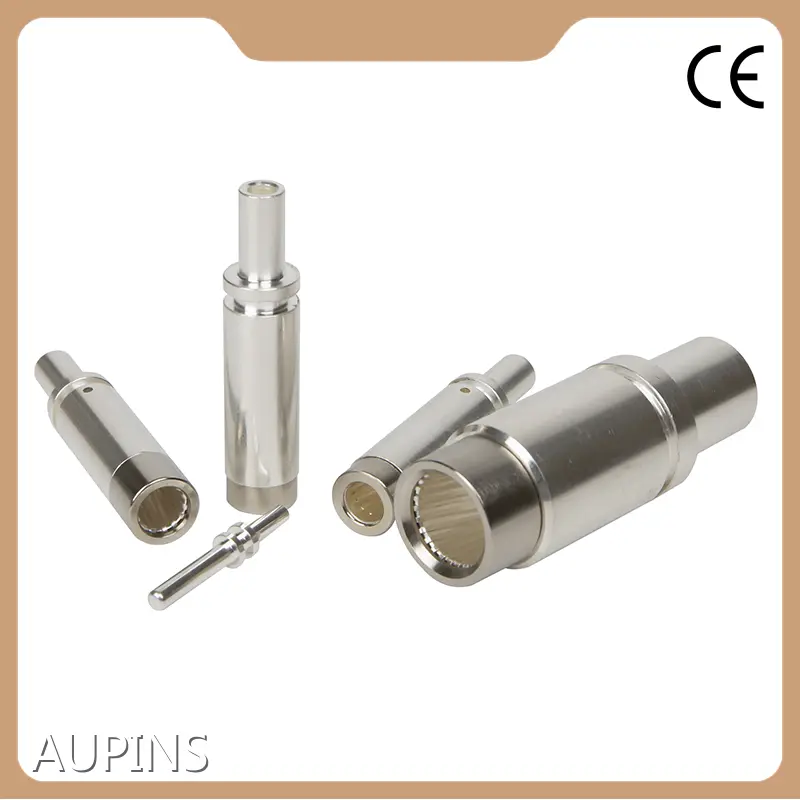

AP SAE DC terminals comply with SAE J1772 ccs standard and are developed specifically for fast charging and mainly for the North American market. It enables maximum charging flexibility and safe charging. It equips safe installation and connecting, and an anti-shock design.

图片2 (3)

Our advantage

Smaller size

AP terminals are not only particularly efficient but also with space-saving and high-current-carrying connectors

Low resistance

AP provides the best user experience specifically designed for consumer product applications by keeping the temperature and energy loss in an efficient level

Long life cycle

The features of HBS terminals are over 20000 cycles with superior stability

Soft pulling force

AP high-current connectors are designed with special structure. This will facilitate user experience by soft pulling force

Parameter

SAE DC CCS1 Electrical Connector Pin
Code	Type	Terminal diameter (mm)	Current(A）	Cables(mm²)	Pin Properties
3101	AP-SDC-FDC-065080	8	65	8AWGor10	Female pin
3102	AP-SDC-FDC-125080	8	125	1/0AWGor50
3103	AP-SDC-FDC-200080	8	200	2/0AWGor70
3104	AP-SDC-FPE-000028	2.8	PE	6
3105	AP-SDC-FCP-000015	1.5	CP	1
3106	AP-SDC-FPP-000015	1.5	PP	1
3111	AP-SDC-MPE-016028	2.8	16	2.5	Male pin
3112	AP-SDC-MPE-032028	2.8	32	6
3113	AP-SDC-MCP-000015	1.5	CP	1
3114	AP-SDC-MDC-065080	8	65	8AWGor10
3115	AP-SDC-MDC-125080	8	125	1/0AWGor50
3116	AP-SDC-MDC-200080	8	200	2/0AWGor70

About Us

AP Team focuses on the product design, development, marketing and supply chain integration of new energy electrical connection. The team has over 20 years of experience in the industry and served multiple well-known domestic and global new energy partners including famous vehicle manufacturers, and electrical connectivity company.

Deeply engaged in the industry for 20 years

50+

Sold to 50+ countries worldwide

Proofing within 7 days at the fastest

7/24h

7/24h reliable service team responds quickly

FAQ

Do you have customer service?

Yes. We have a professional Pre-sales service team and after-sales technical support. We are committed to customer-centered, and providing 24 / 7 effective response, quick response, flexibility, and reliability.

What happens next when I order a customized contact pin or other products?

After we receive a deposit, we will arrange the sampling process. Our specialist will contact you and confirm the drawing, and arrange the production.

Can you customize the drawings and provide design solution according to my needs？

We will recommend our standard products according to your needs, and if they are not suitable, you can also customize them with separate drawings according to your needs.

What is your delivery cycle?

Depending on the product and production capacity, the production cycle may vary. You can contact us to provide you with a detailed production cycle.

Where is your company located？

Our sales center is located in Nanjing, and manufacture factory facility is closely nearby.

What kind of certificates does Aupins have？

Aupins manufacture facility owns the ISO 9001:2015 and TUV / CE certificates. Product quality is our responsibility to any customers.

What are the common applications of hyperbolic contact?

Hyperboloid contacts are used in a variety of engineering and manufacturing applications, including aerospace, defense, telecommunications, and robotics. They are particularly useful in applications requiring high load-bearing capabilities, stability, and resistance to wear and tear. Hyperboloid contacts are often used in harsh environments where other contact mechanisms may fail, such as high temperatures, high pressures, and corrosive environments.

What does LN pin standard for?

LN pins is two pin, L standard for live and N for neutral. L pins help to transfer power in charging period and N pins to create a loop in the system.

Why charger need CC pin?

CC terminal helps people to confirm connect status, if it connects right way. CC pin will send signal to AC station and show on the screen.

Company Advantages

· The color in auto electrical terminals connectors is not easy to fade.

· The product has an internationally-proven quality and meets performance requirements.

· It has received more and better comments from customers.

Company Features

· With years of accumulation in the industry of auto electrical terminals connectors, AUPINS TECHNOLOGY CO., LTD has become a highly competitive enterprise.

· Our company has workers with a broad skill base. Their multi-skill advantage allows the company to be able to adapt schedules to meet customer demand without any loss of productivity.

· Continuously making a breakthrough will make a great contribution to the development of AUPINS. Please contact us!

Application of the Product

The auto electrical terminals connectors produced by our company is suitable for various occasions in industry.

We are always aware of new trends and developments in the market, so we can provide our customers with the industry-leading one-stop solutions.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
