Hot Small Gauge Wire Connectors AUPINS Brand

Inquiry

Product details of the small gauge wire connectors

Product Introduction

AUPINS small gauge wire connectors adopts environmentally friendly materials during the production. Its quality meets the requirements of high quality standards and is certified. AUPINS TECHNOLOGY CO., LTD has been rapidly developed and recognized by the society.

Product description

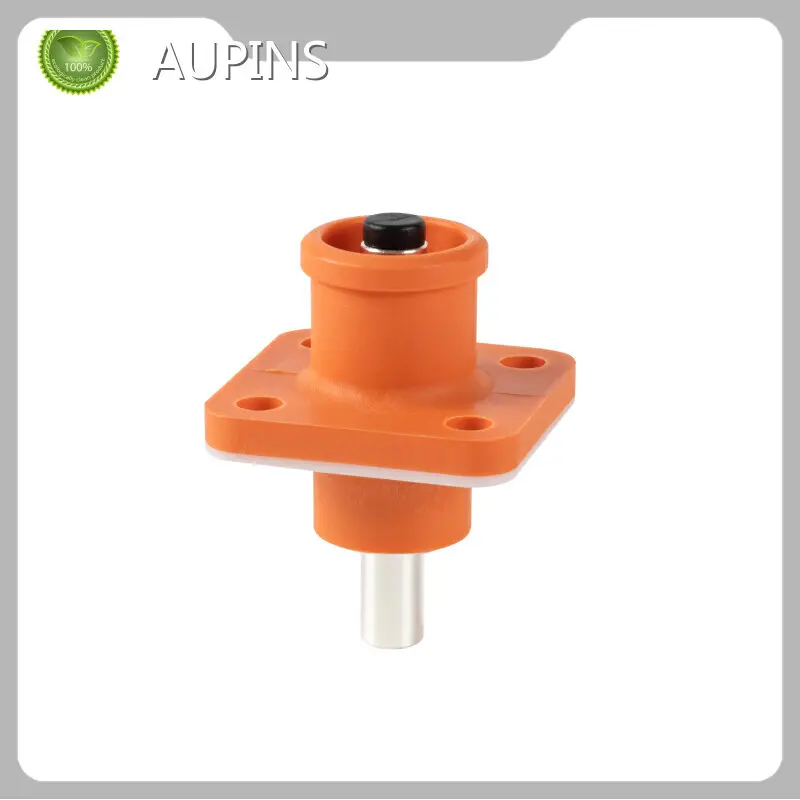

No keys, pin diameter :5.7mm, 8.0mm, 10.3mm, 120A-300A V (DC), color: orange/black, cables: 16 mm²~95 mm²

1.Comply with RoSH/REACH environmental requirements

2.Good protection performance IP67

3.Special interface for energy storage battery module

4. Plug and socket easy connection, push and pull to separate

5.Adopt two measures of color and key position to prevent short circuit of misinsertion

6. Certification: CE and Customized according to customer needs

120A-300A压线式快插系列储能连接器AP-HVCN系列

Our advantage

Smaller size

AP terminals are not only particularly efficient but also with space-saving and high-current-carrying connectors

Low resistance

AP provides the best user experience specifically designed for consumer product applications by keeping the temperature and energy loss in an efficient level

Long life cycle

The features of HBS terminals are over 20000 cycles with superior stability

Soft pulling force

AP high-current connectors are designed with special structure. This will facilitate user experience by soft pulling force

Parameter

Crimp Type (PY) Product Specification
Code	Type	Pin diameter（mm）	Current（A）	Cables(mm²)
60311	AP-HVCN-PY16B-120057	5.7	120	16
60312	AP-HVCN-PY16O-120057	5.7	120	16
60321	AP-HVCN-PY35B-200080	8.0	200	35
60322	AP-HVCN-PY35O-200080	8.0	200	35
60331	AP-HVCN-PY70B-3000103	10.3	300	70
60332	AP-HVCN-PY70O-3000103	10.3	300	70
60341	AP-HVCN-PY25B-120057	5.7	120	25
60342	AP-HVCN-PY25O-120057	5.7	120	25
60351	AP-HVCN-PY50B-200080	8.0	200	50
60352	AP-HVCN-PY50O-200080	8.0	200	50
603161	AP-HVCN-PY95B-300103	10.3	300	95
603162	AP-HVCN-PY95O-300103	10.3	300	95

About Us

AP Team focuses on the product design, development, marketing and supply chain integration of new energy electrical connection. The team has over 20 years of experience in the industry and served multiple well-known domestic and global new energy partners including famous vehicle manufacturers, and electrical connectivity company.

Deeply engaged in the industry for 20 years

50+

Sold to 50+ countries worldwide

Proofing within 7 days at the fastest

7/24h

7/24h reliable service team responds quickly

FAQ

Do you have customer service?

Yes. We have a professional Pre-sales service team and after-sales technical support. We are committed to customer-centered, and providing 24 / 7 effective response, quick response, flexibility, and reliability.

What happens next when I order a customized contact pin or other products?

After we receive a deposit, we will arrange the sampling process. Our specialist will contact you and confirm the drawing, and arrange the production.

Can you customize the drawings and provide design solution according to my needs？

We will recommend our standard products according to your needs, and if they are not suitable, you can also customize them with separate drawings according to your needs.

What is your delivery cycle?

Depending on the product and production capacity, the production cycle may vary. You can contact us to provide you with a detailed production cycle.

Where is your company located？

Our sales center is located in Nanjing, and manufacture factory facility is closely nearby.

What kind of certificates does Aupins have？

Aupins manufacture facility owns the ISO 9001:2015 and TUV / CE certificates. Product quality is our responsibility to any customers.

What are the common applications of hyperbolic contact?

Hyperboloid contacts are used in a variety of engineering and manufacturing applications, including aerospace, defense, telecommunications, and robotics. They are particularly useful in applications requiring high load-bearing capabilities, stability, and resistance to wear and tear. Hyperboloid contacts are often used in harsh environments where other contact mechanisms may fail, such as high temperatures, high pressures, and corrosive environments.

What does LN pin standard for?

LN pins is two pin, L standard for live and N for neutral. L pins help to transfer power in charging period and N pins to create a loop in the system.

Why charger need CC pin?

CC terminal helps people to confirm connect status, if it connects right way. CC pin will send signal to AC station and show on the screen.
