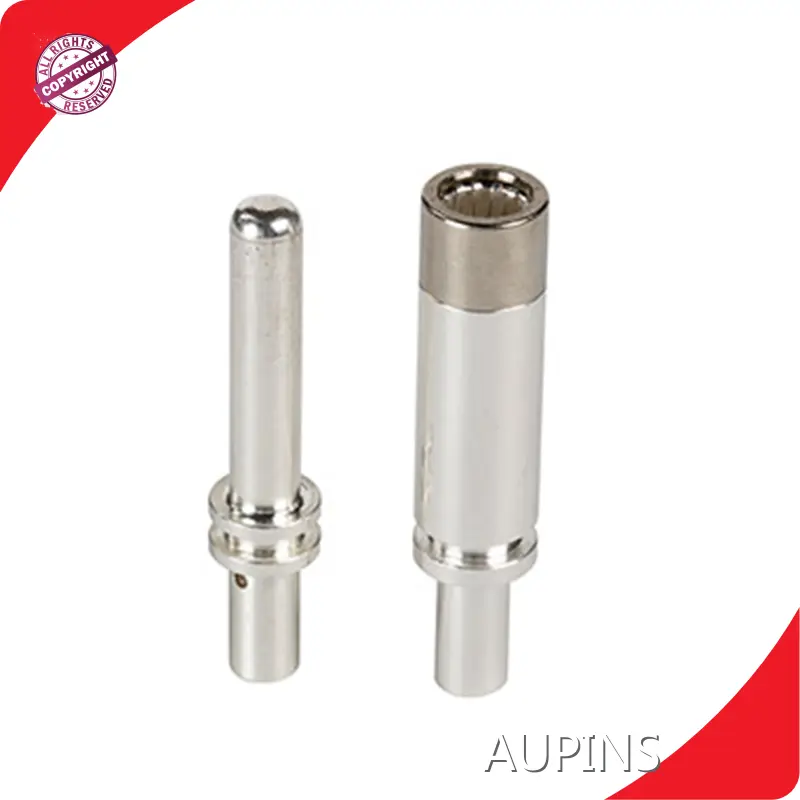

The hyperboloid contacts spring terminal is the patented product specially developed and researched by AP team to match the high current connector of the electric vehicle. It is processed according to the principle of hyperboloid, which is the technology closest to the theoretical hyperboloid. And the hyperboloid contacts structure is able to meet the market demands of multi-variety and small batches.



Our advantage

Hyperboloid contacts offer improved load-bearing capabilities and increased stability compared to traditional point or line contacts

Hyperboloid contacts have improved resistance to wear and tear, making them suitable for use in high-stress applications

The use of hyperboloid contacts can lead to improved performance and reduced maintenance costs in many applications

Parameter

Product Code	imension(Ø)(mm)	Rated Current (A)	Contact Resistanceg(mΩ)	PilinrForce(N)	TemperatureRise<(K)	Maximum Temperature(℃)	Maximum Time(H)
AP-GBDC-FINH3-80	12	80	0.5	25-35	50	120	8
AP-GBDC-FLN-H3-125	12	125
AP-GBDC-FLN-H3-200	12	200
AP-GBDC-FLN-H3-250	12	250
AP-GBAC-FLN-H1-63	6	63		10-18
AP-IECAC-FLN-H1-32	6	32
AP-IECAC-FLN-H1-16	6	16
AP-HBS-14	14	300	0.1	35	1.The data in the table above are able to be customized for2.Different materials are corresponding to the different3.AP is able to provide customized solutions according to
AP-HB5-16	16	400	0.1	40
AP-HBS-18	18	500	0.08	50
AP-HBS-24	24	1000	0.05	50

About Us

AP Team focuses on the product design, development, marketing and supply chain integration of new energy electrical connection. The team has over 20 years of experience in the industry and served multiple well-known domestic and global new energy partners including famous vehicle manufacturers, and electrical connectivity company.

Deeply engaged in the industry for 20 years

50+

Sold to 50+ countries worldwide

Proofing within 7 days at the fastest

7/24h

7/24h reliable service team responds quickly

FAQ

Do you have customer service?

Yes. We have a professional Pre-sales service team and after-sales technical support. We are committed to customer-centered, and providing 24 / 7 effective response, quick response, flexibility, and reliability.

What happens next when I order a customized contact pin or other products?

After we receive a deposit, we will arrange the sampling process. Our specialist will contact you and confirm the drawing, and arrange the production.

Can you customize the drawings and provide design solution according to my needs？

We will recommend our standard products according to your needs, and if they are not suitable, you can also customize them with separate drawings according to your needs.

What is your delivery cycle?

Depending on the product and production capacity, the production cycle may vary. You can contact us to provide you with a detailed production cycle.

Where is your company located？

Our sales center is located in Nanjing, and manufacture factory facility is closely nearby.

What kind of certificates does Aupins have？

Aupins manufacture facility owns the ISO 9001:2015 and TUV / CE certificates. Product quality is our responsibility to any customers.

What are the common applications of hyperbolic contact?

Hyperboloid contacts are used in a variety of engineering and manufacturing applications, including aerospace, defense, telecommunications, and robotics. They are particularly useful in applications requiring high load-bearing capabilities, stability, and resistance to wear and tear. Hyperboloid contacts are often used in harsh environments where other contact mechanisms may fail, such as high temperatures, high pressures, and corrosive environments.

Company Advantages

· All kinds of shapes are available for insulated wire connectors for your choice.

· The product has excellent performance, stable and reliable quality.

· Free customized design solution is one of AUPINS TECHNOLOGY CO., LTD's advantages.

Company Features

· AUPINS TECHNOLOGY CO., LTD is advanced in insulated wire connectors technology development and production.

· We have a professional manufacturing team. They have the required analytical skills to quickly solve problems and are able to constantly optimize the business workflow.

· Along with having a positive impact on the income of our customers, we are committed to providing accurate and timely information and products to our customers while continuously looking for ways to improve our processes. Get info!

Application of the Product

AUPINS's insulated wire connectors is widely used in the industry and is widely recognized by customers.

Since the establishment, AUPINS has always been focusing on the R&D and production of Connector Pin（端子）,Energy Storage Connector（储能链接器）,Electrical connector（电连接器）,High Voltage Cable Harness（高压线束）. With great production capability, we can provide customers with personalized solutions according to their needs.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
