Product details of the bulk electrical connectors

Quick Overview

AUPINS TECHNOLOGY CO., LTD adopts the most environmentally-friendly raw material. Its quality absolutely meets the international quality standards. Orders are placed at the fastest and most reasonable time at AUPINS TECHNOLOGY CO., LTD.

Product Introduction

bulk electrical connectors is more competitive than other products in the same category, as shown in the following aspects.

Product description

Key position:K1,K2.M5Threaded and Waist-type Hole,Holepin diameter :5.7mm, 8.0mm, 10.3mm, 120A-300A V (DC), color: orange/black, Protection degree :IP67

1.Comply with RoSH/REACH environmental requirements

2.Good protection performance IP67

3.Special interface for energy storage battery module

4. Plug and socket easy connection, push and pull to separate

5.Adopt two measures of color and key position to prevent short circuit of misinsertion

6. Certification: CE and Customized according to customer needs

57-1k_asm

Our advantage

Smaller size

AP terminals are not only particularly efficient but also with space-saving and high-current-carrying connectors

Low resistance

AP provides the best user experience specifically designed for consumer product applications by keeping the temperature and energy loss in an efficient level

Long life cycle

The features of HBS terminals are over 20000 cycles with superior stability

Soft pulling force

AP high-current connectors are designed with special structure. This will facilitate user experience by soft pulling force

Parameter

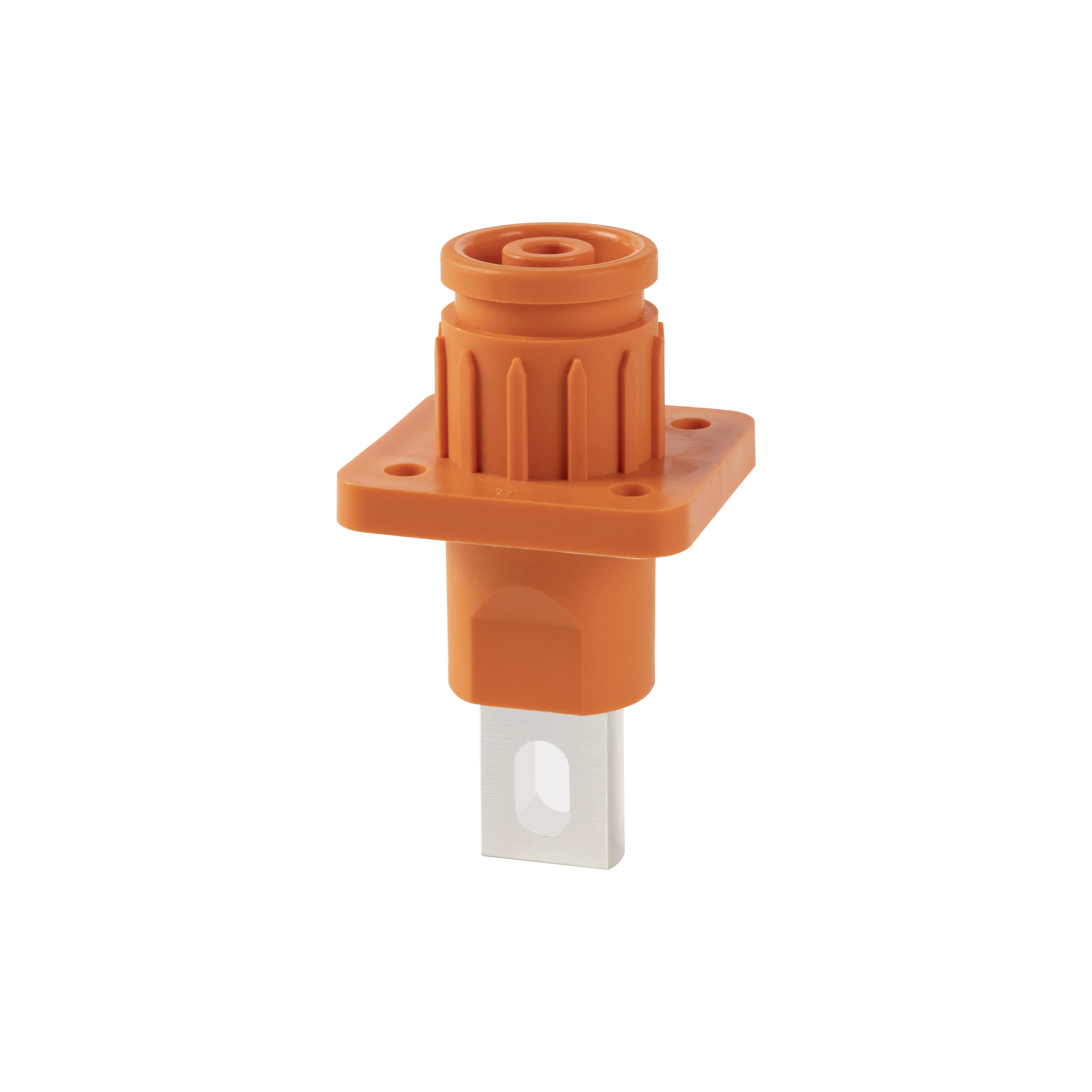

Copper Busbar (PB) Product Specification Waist-type Hole
Code	Type	Pin diameter（mm）	Current（A）	Copper busbar structure（Waist-type Hole)
50111	AP-HVCN-PBBK1-120057	5.7	120	Waist hole copper busbar connection
50112	AP-HVCN-PBOK2-120057	5.7	120
50121	AP-HVCN-PBBK1-200080	8.0	200
50122	AP-HVCN-PBOK2-200080	8.0	200
50131	AP-HVCN-PBBK1-300103	10.3	300
50132	AP-HVCN-PBOK2-300103	10.3	300

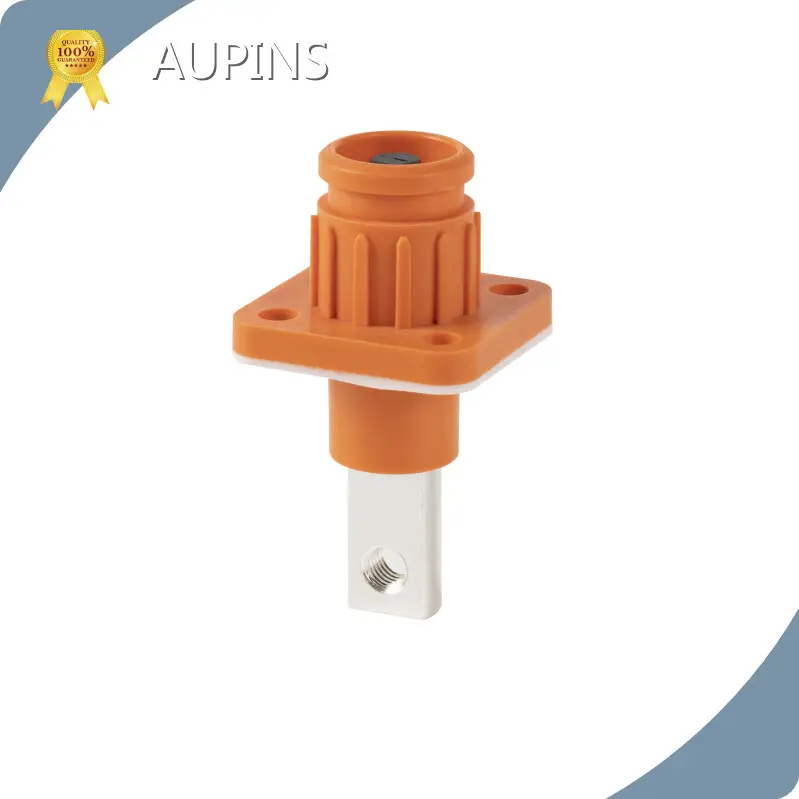

Copper Busbar (PB) Product Specification Threaded Hole
Code	Type	Pin diameter（mm）	Current（A）	Copper busbar structure （Threaded Hole)
50011	AP-HVCN-PBBK1-120057M5	5.7	120	M5-5.2
50012	AP-HVCN-PBOK2-120057M5	5.7	120	M5-5.2
50021	AP-HVCN-PBBK1-200080M6	8.0	200	M6-6.0
50022	AP-HVCN-PBOK2-200080M6	8.0	200	M6-6.0
50031	AP-HVCN-PBBK1-300103M8	10.3	300	M8-8.0
50032	AP-HVCN-PBOK2-300103M8	10.3	300	M8-8.0

About Us

AP Team focuses on the product design, development, marketing and supply chain integration of new energy electrical connection. The team has over 20 years of experience in the industry and served multiple well-known domestic and global new energy partners including famous vehicle manufacturers, and electrical connectivity company.

Deeply engaged in the industry for 20 years

50+

Sold to 50+ countries worldwide

Proofing within 7 days at the fastest

7/24h

7/24h reliable service team responds quickly

FAQ

Do you have customer service?

Yes. We have a professional Pre-sales service team and after-sales technical support. We are committed to customer-centered, and providing 24 / 7 effective response, quick response, flexibility, and reliability.

What happens next when I order a customized contact pin or other products?

After we receive a deposit, we will arrange the sampling process. Our specialist will contact you and confirm the drawing, and arrange the production.

Can you customize the drawings and provide design solution according to my needs？

We will recommend our standard products according to your needs, and if they are not suitable, you can also customize them with separate drawings according to your needs.

What is your delivery cycle?

Depending on the product and production capacity, the production cycle may vary. You can contact us to provide you with a detailed production cycle.

Where is your company located？

Our sales center is located in Nanjing, and manufacture factory facility is closely nearby.

What kind of certificates does Aupins have？

Aupins manufacture facility owns the ISO 9001:2015 and TUV / CE certificates. Product quality is our responsibility to any customers.

What are the common applications of hyperbolic contact?

Hyperboloid contacts are used in a variety of engineering and manufacturing applications, including aerospace, defense, telecommunications, and robotics. They are particularly useful in applications requiring high load-bearing capabilities, stability, and resistance to wear and tear. Hyperboloid contacts are often used in harsh environments where other contact mechanisms may fail, such as high temperatures, high pressures, and corrosive environments.

What does LN pin standard for?

LN pins is two pin, L standard for live and N for neutral. L pins help to transfer power in charging period and N pins to create a loop in the system.

Why charger need CC pin?

CC terminal helps people to confirm connect status, if it connects right way. CC pin will send signal to AC station and show on the screen.
