8 Gauge Wire Connectors Bulk Buy AUPINS

Inquiry

Company Advantages

· While manufacturing AUPINS 8 gauge wire connectors, only top-grade materials are adopted in the production.

· All products that fail the quality test have been eliminated.

· After investigating the consumer groups and consumer demand, AUPINS TECHNOLOGY CO., LTD targets consumption at medium and high levels.

Product description

Key position:K1,K2, pin diameter :5.7mm, 8.0mm, 10.3mm, 120A-300A V (DC), color:orange/black, cables: 16 mm²~95 mm²

1.Comply with RoSH/REACH environmental requirements

2.Good protection performance IP67

3.Special interface for energy storage battery module

4. Plug and socket easy connection, push and pull to separate

5.Adopt two measures of color and key position to prevent short circuit of misinsertion

6. Certification: CE and Customized according to customer need

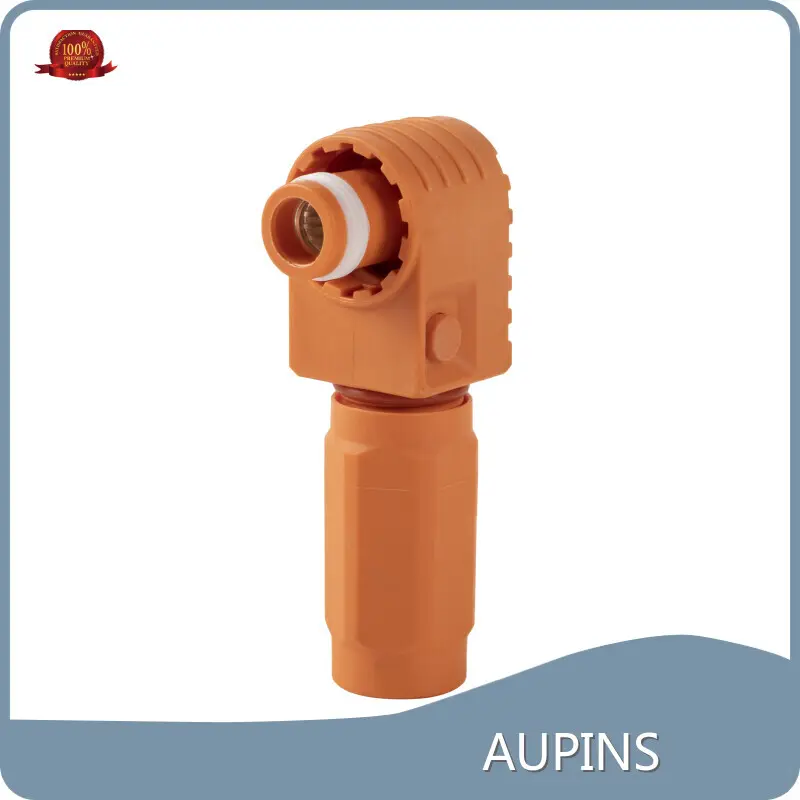

120A-300A储能键位连接器母插孔AP-HVCN系列

Our advantage

Smaller size

AP terminals are not only particularly efficient but also with space-saving and high-current-carrying connectors

Low resistance

AP provides the best user experience specifically designed for consumer product applications by keeping the temperature and energy loss in an efficient level

Long life cycle

The features of HBS terminals are over 20000 cycles with superior stability

Soft pulling force

AP high-current connectors are designed with special structure. This will facilitate user experience by soft pulling force

Parameter

ESS Socket Product Specification
Code	Type	Pin diameter（mm）	Current（A）	Cables(mm²)
50411	AP-HVCN-S16BK1-120057	5.7	120	16
50412	AP-HVCN-S16OK2-120057	5.7	120	16
50421	AP-HVCN-S25BK1-120057	5.7	120	25
50422	AP-HVCN-S25OK2-120057	5.7	120	25
50431	AP-HVCN-S35BK1-200080	8.0	200	35
50432	AP-HVCN-S35OK2-200080	8.0	200	35
50441	AP-HVCN-S50BK1-200080	8.0	200	50
50442	AP-HVCN-S50OK2-200080	8.0	200	50
50451	AP-HVCN-S70BK1-300103	10.3	300	70
50452	AP-HVCN-S70OK2-300103	10.3	300	70
50461	AP-HVCN-S95BK1-300103	10.3	300	95
50462	AP-HVCN-S95OK2-300103	10.3	300	95

About Us

AP Team focuses on the product design, development, marketing and supply chain integration of new energy electrical connection. The team has over 20 years of experience in the industry and served multiple well-known domestic and global new energy partners including famous vehicle manufacturers, and electrical connectivity company.

Deeply engaged in the industry for 20 years

50+

Sold to 50+ countries worldwide

Proofing within 7 days at the fastest

7/24h

7/24h reliable service team responds quickly

FAQ

Do you have customer service?

Yes. We have a professional Pre-sales service team and after-sales technical support. We are committed to customer-centered, and providing 24 / 7 effective response, quick response, flexibility, and reliability.

What happens next when I order a customized contact pin or other products?

After we receive a deposit, we will arrange the sampling process. Our specialist will contact you and confirm the drawing, and arrange the production.

Can you customize the drawings and provide design solution according to my needs？

We will recommend our standard products according to your needs, and if they are not suitable, you can also customize them with separate drawings according to your needs.

What is your delivery cycle?

Depending on the product and production capacity, the production cycle may vary. You can contact us to provide you with a detailed production cycle.

Where is your company located？

Our sales center is located in Nanjing, and manufacture factory facility is closely nearby.

What kind of certificates does Aupins have？

Aupins manufacture facility owns the ISO 9001:2015 and TUV / CE certificates. Product quality is our responsibility to any customers.

What are the common applications of hyperbolic contact?

Hyperboloid contacts are used in a variety of engineering and manufacturing applications, including aerospace, defense, telecommunications, and robotics. They are particularly useful in applications requiring high load-bearing capabilities, stability, and resistance to wear and tear. Hyperboloid contacts are often used in harsh environments where other contact mechanisms may fail, such as high temperatures, high pressures, and corrosive environments.

What does LN pin standard for?

LN pins is two pin, L standard for live and N for neutral. L pins help to transfer power in charging period and N pins to create a loop in the system.

Why charger need CC pin?

CC terminal helps people to confirm connect status, if it connects right way. CC pin will send signal to AC station and show on the screen.

Company Features

· AUPINS TECHNOLOGY CO., LTD has fast become a dynamic and fast-moving company specializing in the production of 8 gauge wire connectors in China.

· AUPINS TECHNOLOGY CO., LTD has the formidable technology competitive advantage. AUPINS TECHNOLOGY CO., LTD may give you a competitive edge over other 8 gauge wire connectors suppliers. AUPINS TECHNOLOGY CO., LTD now has a professional team on technical and engineering management which bring remarkable achievements.

· We implement our environmental sustainability strategy by reducing our own environmental impacts such as the reduction of energy use and water.

Product Details

The 8 gauge wire connectors produced by AUPINS are of superior quality, and the specific details are as follows.

Application of the Product

The 8 gauge wire connectors of AUPINS can be used in many industries.

AUPINS always provides customers with reasonable and efficient one-stop solutions based on the professional attitude.

Product Comparison

AUPINS's 8 gauge wire connectors gains a high market share for the following advantages.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
