NACS Tesla Charging Socket

Mechanical properties:

unmated :IP2X

Safety class:Ⅱ

Insertion/withdrawal force :<90N

Locking system: Snap-in

Connector System :￠9mm

Degree of protection,mated ：Type 3R

Durability: 10000 Mating Cycles

Environmental performance :

Waterproof Level:IP67

Insulation material:PC

Flame class:UL94-VO

Ambient temperature range :-40℃..+50℃

Operating temperature:-40℃-105℃

Salt mist spray test.degree of severity 5 :IEC 60068-2-52

Contact material :Copper Alloy,Silver plated

Electrical performance :

Rated voltage :1000VDC

Rated current :350A/300A/250A/200A/150A/125A/80A/65A/60A/50A/48A/40A/32A/16A

Test voltage :3KV(50Hz/1min)

Contact resistance of plug connectors :0.35mΩ Max

Inquiry

Write a Review

Product description

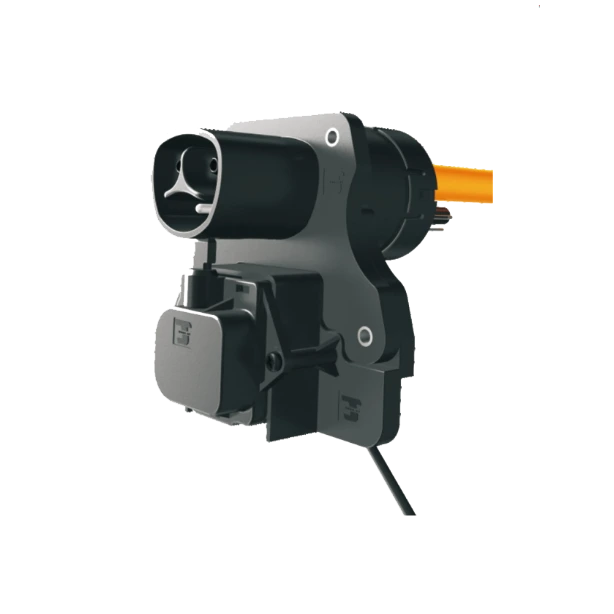

(1) The NACS charge port is a combination of AC/DC charging

the highest amperage is 350A, rated voltage is 1000V DC.

(2) The Tesla charge inlet assembly is with cables, the cable length

can be customized according to customers' requirements.

(3) The J3400 NACS charge inlet is a module design.

(4) All parts comply with RoHS, OEM service is welcome

nacs

Our advantage

Smaller size

AP terminals are not only particularly efficient but also with space-saving and high-current-carrying connectors

Low resistance

AP provides the best user experience specifically designed for consumer product applications by keeping the temperature and energy loss in an efficient level

Long life cycle

The features of HBS terminals are over 20000 cycles with superior stability

Soft pulling force

AP high-current connectors are designed with special structure. This will facilitate user experience by soft pulling force

Parameter

NACS Vehicle Plug/ Socket
Code	Type	Rated current	Rated voltage	Test voltage
13001	AP-NACS-Plug	65A/60A/50A/48A/40A/32A/16A	500VDC/240VAC	2KV(50Hz/1min)
13002	AP-NACS-CS	350A/300A/250A/200A/150A/125A/80A/65A/60A/50A/48A/40A/32A/16A	1000VDC	3KV(50Hz/1min)

About Us

AP Team focuses on the product design, development, marketing and supply chain integration of new energy electrical connection. The team has over 20 years of experience in the industry and served multiple well-known domestic and global new energy partners including famous vehicle manufacturers, and electrical connectivity company.

Deeply engaged in the industry for 20 years

50+

Sold to 50+ countries worldwide

Proofing within 7 days at the fastest

7/24h

7/24h reliable service team responds quickly

FAQ

Do you have customer service?

Yes. We have a professional Pre-sales service team and after-sales technical support. We are committed to customer-centered, and providing 24 / 7 effective response, quick response, flexibility, and reliability.

What happens next when I order a customized contact pin or other products?

After we receive a deposit, we will arrange the sampling process. Our specialist will contact you and confirm the drawing, and arrange the production.

Can you customize the drawings and provide design solution according to my needs？

We will recommend our standard products according to your needs, and if they are not suitable, you can also customize them with separate drawings according to your needs.

What is your delivery cycle?

Depending on the product and production capacity, the production cycle may vary. You can contact us to provide you with a detailed production cycle.

Where is your company located？

Our sales center is located in Nanjing, and manufacture factory facility is closely nearby.

What kind of certificates does Aupins have？

Aupins manufacture facility owns the ISO 9001:2015 and TUV / CE certificates. Product quality is our responsibility to any customers.

What are the common applications of hyperbolic contact?

Hyperboloid contacts are used in a variety of engineering and manufacturing applications, including aerospace, defense, telecommunications, and robotics.
They are particularly useful in applications requiring high load-bearing capabilities, stability, and resistance to wear and tear.
Hyperboloid contacts are often used in harsh environments where other contact mechanisms may fail, such as high temperatures, high pressures, and corrosive environments.

What does LN pin standard for?

LN pins is two pin, L standard for live and N for neutral. L pins help to transfer power in charging period and N pins to create a loop in the system.

Why charger need CC pin?

CC terminal helps people to confirm connect status, if it connects right way. CC pin will send signal to AC station and show on the screen.
