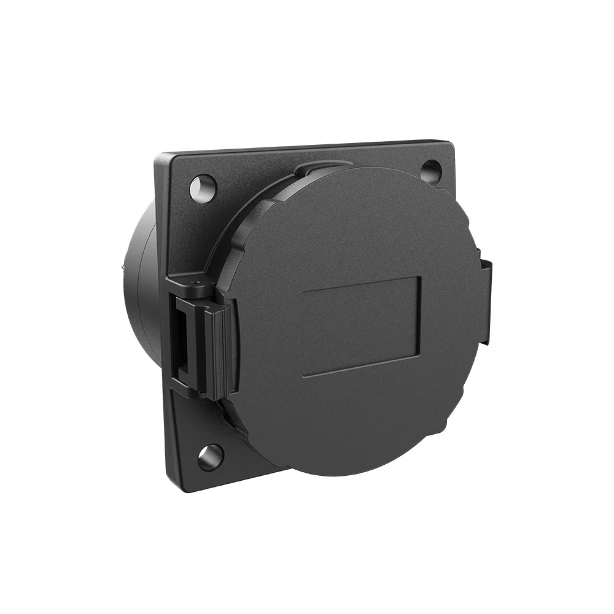

CHAdeMO DC Charging Socket - AUPINS

Working temperature: -30℃～50℃

Rated voltage: DC input 750V.dc

Rated current: 80A，125A，150A，200A

Insulation resistance: ＞1000MΩ (1000V.dc)

Withstand voltage performance: 3000V.ac

Insertion and extraction force: <100N

Protection level: IP54 when the cover is closed, IP55 when inserting the gun; IP65 for the electronic lock; IP67 for the cable outlet at the end of the charging stand

Mechanical life: ≥10,000 times (no load)

Inquiry

Write a Review

Product description

The CHAdeMO DC socket produced by AP is used in electric vehicles. It integrates the signal terminals into one body and uses connectors to outlet the wires. The assembly method is simple.

图片1 (5)

Our advantage

Provide long-term services to the world's leading companies and ensure stable delivery

IQC and CNAS laboratory testing to ensure product quality control

Mass production continues to reduce costs

Parameter

DC IEC Terminal
ltem	Dimension(mm)	Rated current and function
LN terminal	8	200A/150A/125A
PE terminal	6	Earthing
CC terminal	3	Signa
