IEC Electronic Sockets - AUPINS
Working temperature: -40℃～85℃
Rated voltage: 12VDC
Working voltage: 9VDC～16VDC
Rated current Rated current: ≤1A; signal switch current: ≤50mA (12 V.dc)
Locked rotor current: ≤3.2A
Insulation resistance: 500Vdc, 1min, insulation resistance ≥100MΩ
Withstand voltage performance: 500Vac, 1min, leakage current ≤10mA
Driving time (normal temperature): 350ms (normal temperature 12VDC)
Locking rod push and pull force: ≥30N (normal temperature 12VDC)
Protection grade: IP65
Lifespan: 30000 cycles (12VDC normal temperature, power-on time 350ms, interval 2s)
Position feedback: Lock/unlock dual position feedback
Cable specification: FLRY-B 0.5 square
Product description

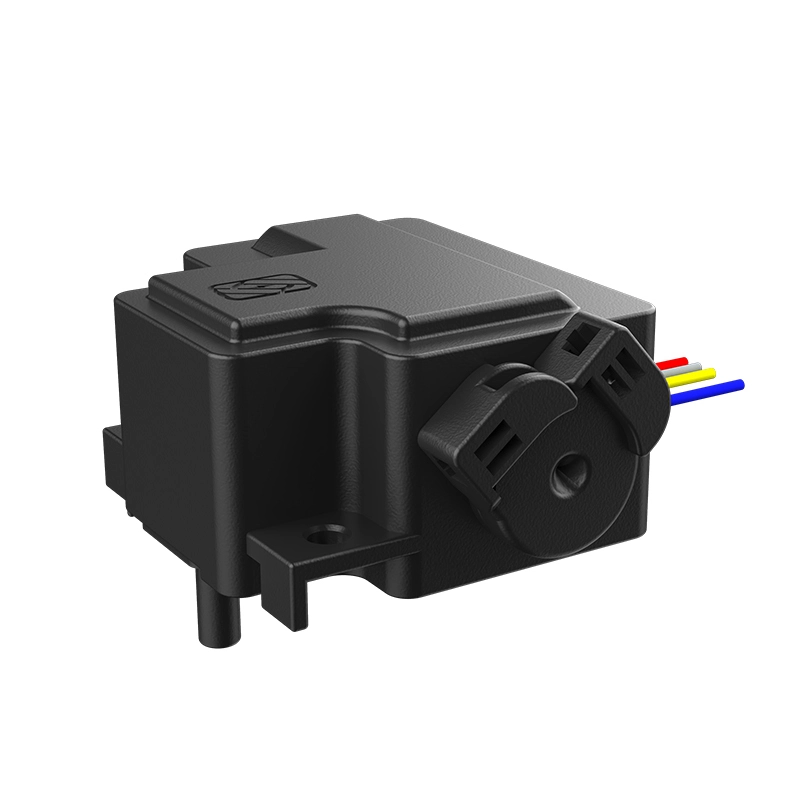

● The European standard electronic locks developed and produced by AP are mainly used in European standard AC charging sockets at the end of new energy vehicles and European standard charging sockets at the pile end. During the product development process, full consideration was given to the size of the electronic lock actuator.
● Technical points such as size, locking/unlocking single/double position signal feedback, and overall IP65 protection performance overcome and solve the problems and concerns that customers encounter when using electronic locks.
Our advantage
About Us
AP Team focuses on the product design, development, marketing and supply chain integration of new energy electrical connection. The team has over 20 years of experience in the industry and served multiple well-known domestic and global new energy partners including famous vehicle manufacturers, and electrical connectivity company.
FAQ
