Energy storage battery pack connector
Mechanical Performance：
Plastic shell: PA66+G/F
Contact terminal: Copper Alloy, Gold-plated
Mechanical life: 500 times
Environmental performance:
Operating temperature: -40℃~125℃
Flame-retardant grades :UL94 V-0
Electrical performance:
Rated current: 45A
Contact resistance: ≤0.3mΩ;
Insulation resistance: ≥5000MΩ
Working voltage: 500V AC/DC
Product description

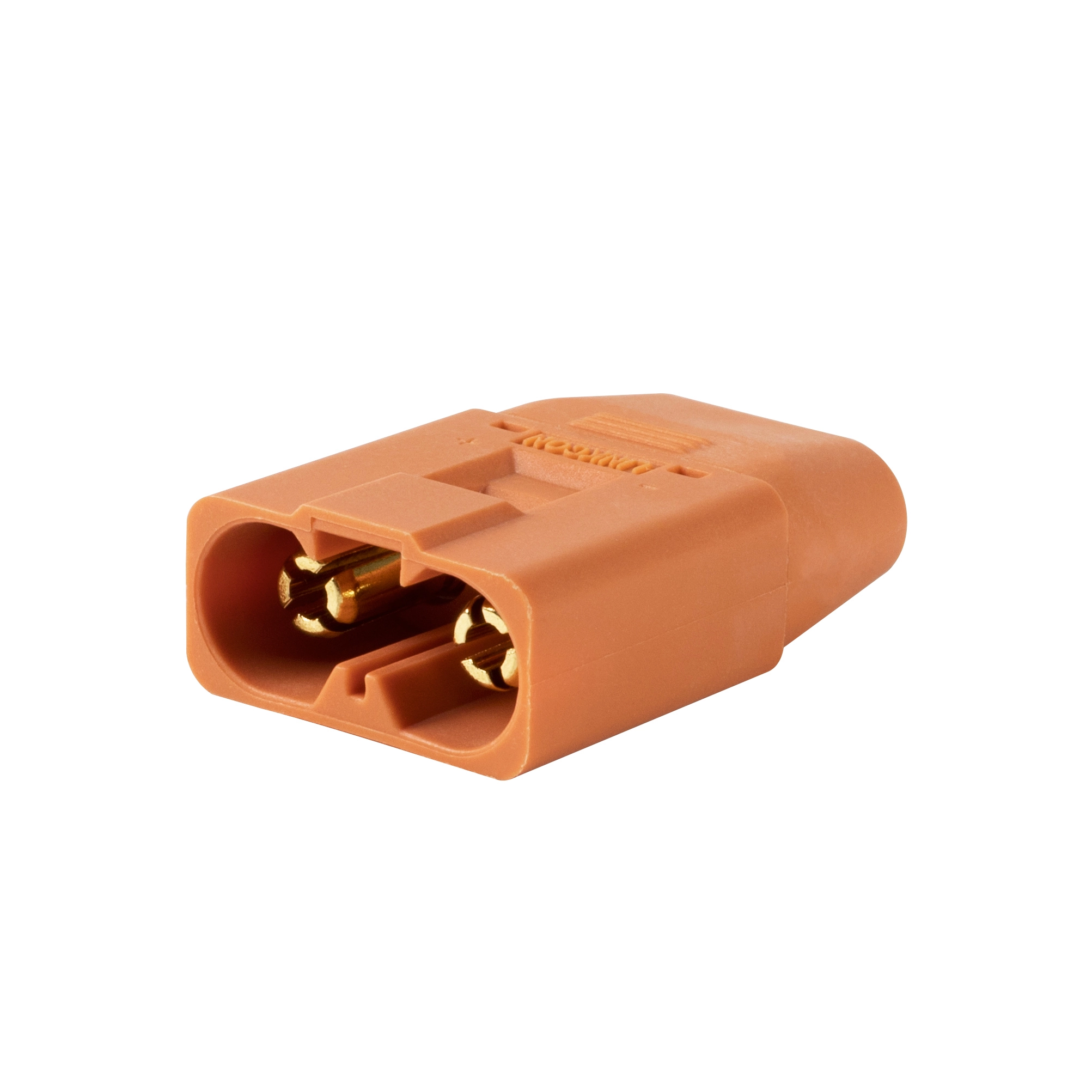

AP-HVLB90 battery connector is the interconnection interface of the batteries inside the energy storage module. It is snap-connected through plugs and sockets and separated by pressing and pulling.
1.Internal battery interconnection interface of energy storage module
2.Plug and socket are connected by snap-on connection and separated by easy pressing and pulling
3. Meets RoSH environmental requirements
4. Certification: CE and Customized according to customer needs
Our advantage
Parameter
|
Energy Storage Battery Connector Product Specification |
||||
|
Code |
Type |
Wire outer diameter(mm） |
Current（A) |
Wire Specifications |
|
60571 |
AP-HVLB90-2YM |
≥5.5 |
120 |
10AWG or 6mm2 |
|
60572 |
AP-HVLB90-2YF |
≥5.5 |
120 |
10AWG or 6mm2 |
