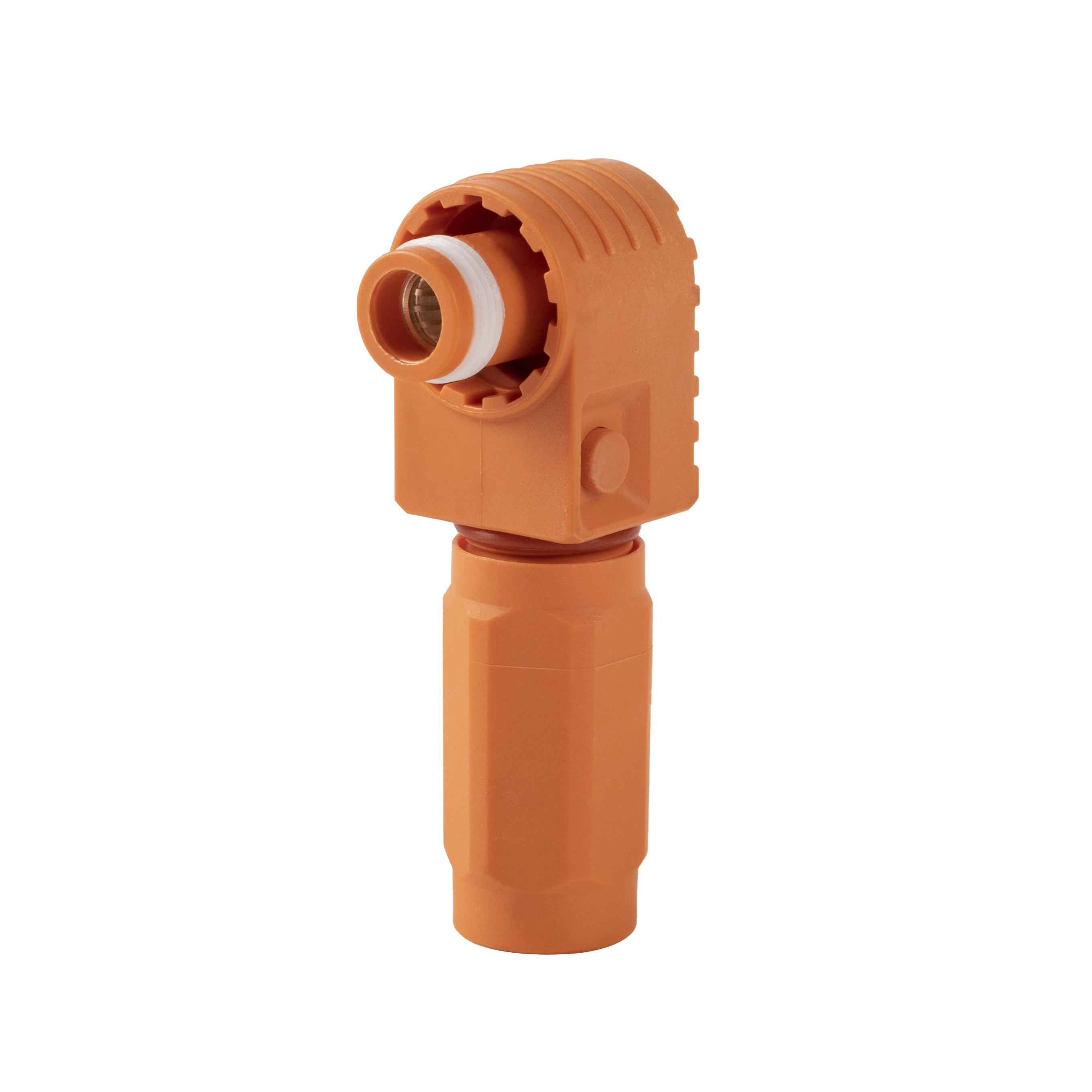

120A-300A ESS Socket with Key

Mechanical Performance：

Plastic shell: PA66+G/F

Sealing ring: Silicon rubber

Contact terminal: T2 Copper Alloy, Silver-plated

Mechanical life: 500 times

Environmental performance:

Operating temperature: -40℃~125℃

Protection degree :IP67

Flame-retardant grades :UL94 V-0

Electrical performance:

Rated current: 5.7mm (120A), 8.0mm (200A), 10.3mm (300A)

Contact resistance: 0.2mΩ Max

Insulation resistance: ≥5000MΩ

Working voltage: 1500V AC/DC

withstand voltage : 6800V AC/DC

Inquiry

Write a Review

Product description

Key position:K1,K2, pin diameter :5.7mm, 8.0mm, 10.3mm, 120A-300A V (DC), color:orange/black, cables: 16 mm²~95 mm²

1.Comply with RoSH/REACH environmental requirements

2.Good protection performance IP67

3.Special interface for energy storage battery module

4. Plug and socket easy connection, push and pull to separate

5.Adopt two measures of color and key position to prevent short circuit of misinsertion

6. Certification: CE and Customized according to customer need

120A-300A储能键位连接器母插孔AP-HVCN系列

Our advantage

Smaller size

AP terminals are not only particularly efficient but also with space-saving and high-current-carrying connectors

Low resistance

AP provides the best user experience specifically designed for consumer product applications by keeping the temperature and energy loss in an efficient level

Long life cycle

The features of HBS terminals are over 20000 cycles with superior stability

Soft pulling force

AP high-current connectors are designed with special structure. This will facilitate user experience by soft pulling force

Parameter

ESS Socket Product Specification
Code	Type	Pin diameter（mm）	Current（A）	Cables(mm²)
50411	AP-HVCN-S16BK1-120057	5.7	120	16
50412	AP-HVCN-S16OK2-120057	5.7	120	16
50421	AP-HVCN-S25BK1-120057	5.7	120	25
50422	AP-HVCN-S25OK2-120057	5.7	120	25
50431	AP-HVCN-S35BK1-200080	8.0	200	35
50432	AP-HVCN-S35OK2-200080	8.0	200	35
50441	AP-HVCN-S50BK1-200080	8.0	200	50
50442	AP-HVCN-S50OK2-200080	8.0	200	50
50451	AP-HVCN-S70BK1-300103	10.3	300	70
50452	AP-HVCN-S70OK2-300103	10.3	300	70
50461	AP-HVCN-S95BK1-300103	10.3	300	95
50462	AP-HVCN-S95OK2-300103	10.3	300	95
