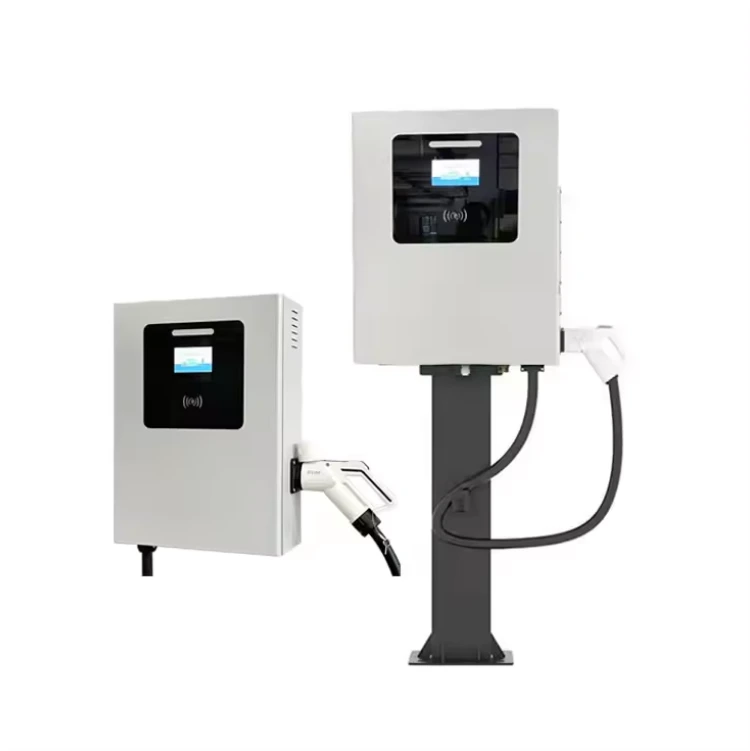

Wall DC Charger
Mechanical properties:
Display: 5-inch display
Input cable length: 0m (customizable)
Cable length: 5m (customizable)
Weight:44KG/56KG/70KG
Size(mm):450*150*310/500*230*700/600*270*830
Interface standard: CCS /CHADEMO /GB/T
Product description
(1) Protection level up to IP54, moisture-proof and waterproof
(2) Fully compatible with all-electric vehicles on the market
(3) Support Ethernet, 4G, and WIFI wireless communication
(4) Plug and play, swipe card plus password, scheduled charging
(5) OCPP can be configured as a foreign language version
(6) Can be used for home or business
Our advantage
Parameter
|
Wall DC Charger-WD |
|||||
|
Code |
Type |
Output power(KW) |
Output current(A) |
Input current(A) |
Display |
|
18001 |
AP-TA-DC-20WD |
20 |
60 |
32 |
5-inch display |
|
18002 |
AP-TA-DC-30WD |
30 |
100 |
25 |
|
|
18003 |
AP-TA-DC-40WD |
40 |
133 |
32 |
|
|
Charging protocol：GBT27930/CHADEMO 2.0/ DIN 70121 OCPP 1.6(JSON)/ISO 15118 |
|||||
