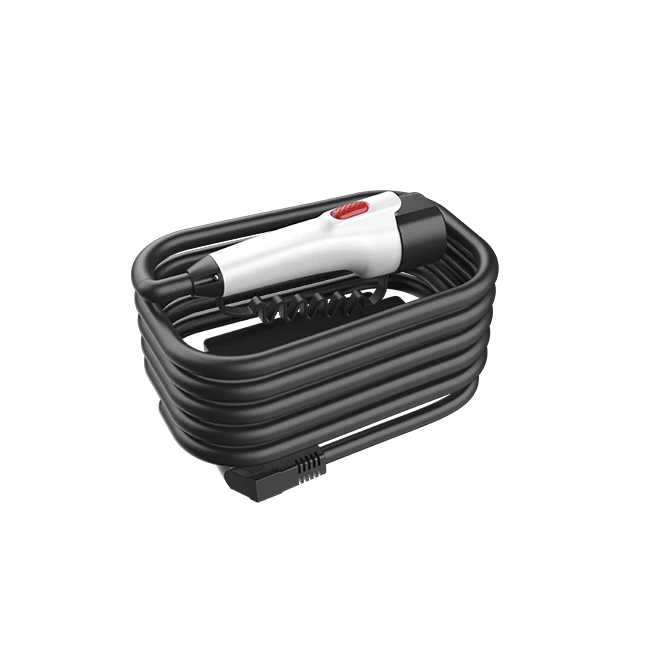

GB/T 16A/250V Portable Charger
Working temperature: -30℃～+50℃
Rated voltage: 250V AC 50Hz
Rated current: 16A/10A
Insulation resistance: ＞10MΩ (500V DC 1min)
Withstand voltage: 2000V AC 1min without flashover breakdown
Mechanical life: ≥10000 (no load)
Insertion and extraction force: <100N (gun-seat insertion and extraction)
Protection level: IP55
Protection functions: overvoltage protection, undervoltage protection, overcurrent protection, leakage protection,Over-temperature protection, grounding protection, short circuit protection
Product description
This product is used in pure electric and plug-in hybrid vehicles to charge electric vehicles through the vehicle interface. Based on the conventional mode two charging gun, the three plugs are innovatively integrated with the on-cable control and protection device (IC-CPD). It is small in size, light in weight, and easier to carry and store.
Our advantage
About Us
AP Team focuses on the product design, development, marketing and supply chain integration of new energy electrical connection. The team has over 20 years of experience in the industry and served multiple well-known domestic and global new energy partners including famous vehicle manufacturers, and electrical connectivity company.
