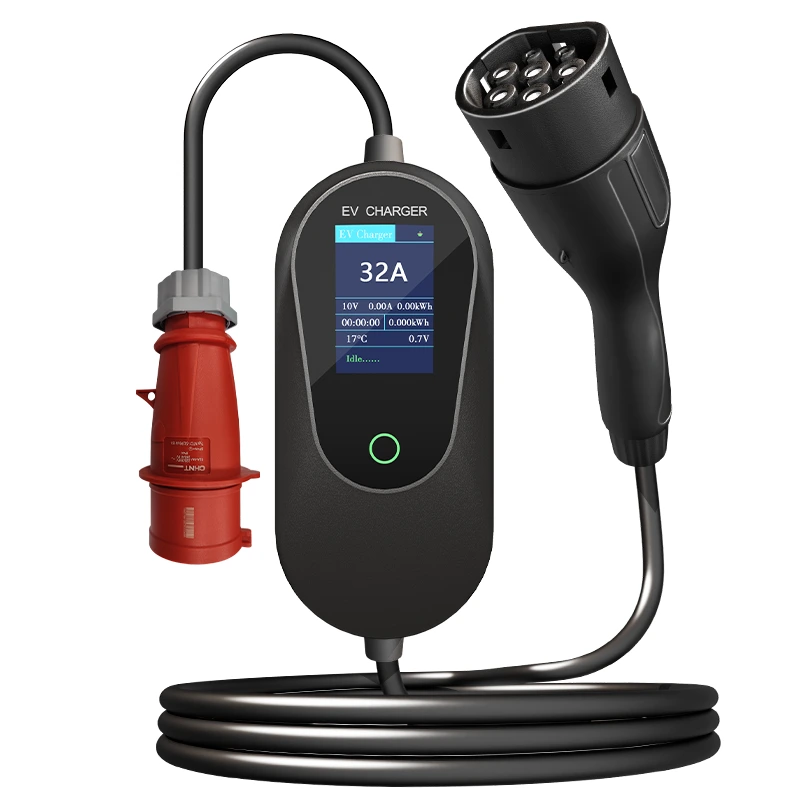

22KW IEC 62196 EVSE portable EV charger

Mechanical Performance：

Human-computer interface:2.8 inches LCD color display (optional)

Length:5m (optional)

Charging connector: Type 2 cable

Plug: Red CEE plug

Environment Performance:

Rated Current:16A /32A

Rated output wattage:11kw/22kw

Rated AC input voltage:240V+15%AC

Electrical performance:

Working temperature:-30℃~+50℃

Protection level: IP67

Working altitude:<2000m

Inquiry

Write a Review

Product description

It supports a maximum charging power of 22kW, greatly shortening the charging time and improving the charging efficiency. It is backward compatible with multiple powers such as 11kW, 7kW, and 3.5kW to meet the charging needs in different scenarios.

T4B-TYPE2-22KW

Our advantage

Smaller size

AP terminals are not only particularly efficient but also with space-saving and high-current-carrying connectors

Low resistance

AP provides the best user experience specifically designed for consumer product applications by keeping the temperature and energy loss in an efficient level

Long life cycle

The features of HBS terminals are over 20000 cycles with superior stability

Soft pulling force

AP high-current connectors are designed with special structure. This will facilitate user experience by soft pulling force

Parameter

IEC62196 Type 2 Portable EV Chargers
Code	Type	Output power	Current（A)	Plug	interface
16001	AP-T1A-TYPE2-3.5KW	3.5	16	IEC cable	2.8 inches LCD color display (optional)
16002	AP-T1A-TYPE2-7KW	7	32	Blue CEE plug
16003	AP-T1A-TYPE2-11KW	11	16	Red CEE plug
16004	AP-T1A-TYPE2-22KW	22	32	Red CEE plug
16005	AP-T1B-TYPE2-3.5KW	3.5	16	IEC cable	indicator light screen
16006	AP-T1B-TYPE2-7KW	7	32	Blue CEE plug	indicator light screen
16007	AP-T1B-TYPE2-3.5KW	3.5	16	IEC cable	2.8 inches LCD color display (optional)
16008	AP-T4B-TYPE2-7KW	7	32	Blue CEE plug
16009	AP-T4B-TYPE2-11KW	11	16	Red CEE plug
16010	AP-T4B-TYPE2-22KW	22	32	Red CEE plug
16011	AP-TYPE2-ZSD16A	3.5	16	IEC cable	indicator light screen
16012	AP-TYPE2-ZSD32A	7	32	Blue CEE plug	indicator light screen

About Us

AP Team focuses on the product design, development, marketing and supply chain integration of new energy electrical connection. The team has over 20 years of experience in the industry and served multiple well-known domestic and global new energy partners including famous vehicle manufacturers, and electrical connectivity company.

Deeply engaged in the industry for 20 years

50+

Sold to 50+ countries worldwide

Proofing within 7 days at the fastest

7/24h

7/24h reliable service team responds quickly

FAQ

Do you have customer service?

Yes. We have a professional Pre-sales service team and after-sales technical support. We are committed to customer-centered, and providing 24 / 7 effective response, quick response, flexibility, and reliability.

What happens next when I order a customized contact pin or other products?

After we receive a deposit, we will arrange the sampling process. Our specialist will contact you and confirm the drawing, and arrange the production.

Can you customize the drawings and provide design solution according to my needs？

We will recommend our standard products according to your needs, and if they are not suitable, you can also customize them with separate drawings according to your needs.

What is your delivery cycle?

Depending on the product and production capacity, the production cycle may vary. You can contact us to provide you with a detailed production cycle.

Where is your company located？

Our sales center is located in Nanjing, and manufacture factory facility is closely nearby.

What kind of certificates does Aupins have？

Aupins manufacture facility owns the ISO 9001:2015 and TUV / CE certificates. Product quality is our responsibility to any customers.

What are the common applications of hyperbolic contact?

Hyperboloid contacts are used in a variety of engineering and manufacturing applications, including aerospace, defense, telecommunications, and robotics.
They are particularly useful in applications requiring high load-bearing capabilities, stability, and resistance to wear and tear.
Hyperboloid contacts are often used in harsh environments where other contact mechanisms may fail, such as high temperatures, high pressures, and corrosive environments.

What does LN pin standard for?

LN pins is two pin, L standard for live and N for neutral. L pins help to transfer power in charging period and N pins to create a loop in the system.

Why charger need CC pin?

CC terminal helps people to confirm connect status, if it connects right way. CC pin will send signal to AC station and show on the screen.
